Transitions & flexible connectors for axial fans

Transitions & flexible connectors for axial fans

Features

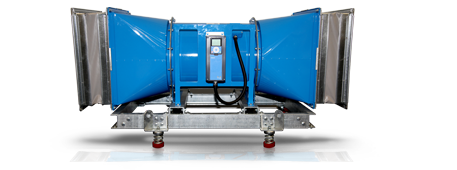

A structurally certified Prefabricated modular assembly that includes a Fantech duct mounted Axial Flow Fan ranging from 560mm to 2000mm diameter. The modular assembly also includes duct transitions, flexible connectors and base frame which incorporates a mounting position for VSD if required. They can simplify installation, improve on-site productivity and save engineering, project drafting and labour costs.

  • Structurally certified modular design.
  • Certified base frame is manufactured from durable hot-dip galvanised PFC (Parallel Flange Channel).
  • Revit files with clash detection available for all models.
  • Transitions designed to optimise system performance are available as nude or with 50mm, 75mm and 100mm noise suppressing material.
  • Flexible connectors available for standard and high temperature applications.
  • Suitable for both floor or hung installations.
  • Fitted with certified lifting lugs.
  • Pre-wiring of Variable Speed Drives using EMC glands and screened cable is available.

Application

Commercial and industrial supply or exhaust air applications such as shopping centres, office buildings, hotels and carparks. Can be manufactured to handle most conditions from ambient air to hot, toxic and noxious gases.

Construction

Transitions are manufactured from galvanised sheet outer, with perforated foil inner sheet for diameters up to 710mm, and perforated galvanised inner sheet for diameters 800mm and above. All sizes are available with noise suppressing material. Standard or high temperature flexible connections are fitted to both inlet and outlet transitions.

Certified base frame is manufactured from hot-dip galvanised PFC (Parallel Flange Channel). Fan is as per AP range.

Certification

The modular assembly
Structurally certified to meet the following Australia Standards:
AS3990-1993 Mechanical Equipment - Steelwork.
AS1170.0:2002 - Structual Design Actions
AS1170.2:2002 - Structual Design Actions - Wind Actions

Lifting lugs
Structurally certified to meet Australian Standards:
AS3990-1993 Mechanical Equipment - Steelwork
AS4991:2004 - Lifting devices

Suggested Specification

The Prefabricated assembly shall comprise of a duct mounted axial flow fan, transitions and flexible connectors on a structurally certified base frame as designed and manufactured by Fantech Pty Ltd.

Fan casings shall be of galvanised steel. Impellers shall be of GRP (unless nominated otherwise), adjustable pitch and aerofoil section.

Transitions shall be of galvanised sheet outer, with perforated foil inner sheet for diameters up to 710mm and perforated
galvanised inner sheet for diameters 800mm and above.

All sizes shall be available with noise suppressing material. Standard or high temperature flexible connections shall be fitted to both inlet and outlet of transitions.

The base frame shall be manufactured from hot-dip galvanised PFC (Parallel Flange Channel).

The assembly will be suitable for either floor or hung installations. Additionally it shall incorporate a VSD mounting frame if required and can be matched with anti-vibration spring mounts that meets the requirements of the acoustic specification.

All axial flow fan models shall be fully tested for air flow to
BS848:Part 1, 1980 or ISO5801:1997 and noise to BS848:Part 2, 1985.

The modular assembly shall be certified to meet Australian Standards:
AS3990-1993 Mechanical Equipment - Steelwork.
AS1170.0:2002 - Structual Design Actions.
AS1170.2:2002 - Structual Design Actions - Wind Actions

The lifting lugs shall be certified to meet Australian Standards:
AS3990-1993 Mechanical Equipment - Steelwork.
AS4991:2004 - Lifting devices.
