Performance Curve - ULT29-150RDW

Description

The stylish and modern Ultimate ceiling mounted header box fan is the quietest and most powerful in its class. Its fully optimised inlet cone and centrifugal impeller design maximises air pressure that ensures rooms are quickly cleared of steam and unpleasant odours. It includes features such as a unique swing clip and removable spigot that makes it very easy to install into a standard 10" round fan cut out.

Features

Advanced impeller and housing design provides powerful air flow and minimises noise
High strength swing clips make installation easy
Low resistance non-return backdraft damper maximises air flow performance
Easy to remove diffuser makes cleaning simple
Can be retrofitted into a standard 10" round fan cut out
Fitted plug and lead simplifies installation
Square diffuser can be easily rotated to align with walls
Available with a modern square or round diffuser
Available with a 3 to 15 minute adjustable run-on timer

Construction
Housing and grille are made from injected moulded plastic.
Fans are forward-curved centrifugal, driven by squirrel cage motor.

Motors
Type - squirrel cage induction motor.
Electricity supply - 230V, single-phase, 50Hz.
Bearings - sealed for life, ball.

Internal Thermal Protection
Automatic reset thermal protection is fitted as standard

Testing
Air flow to ISO5801: 2007
Noise to ISO3744: 2010

Special Note
Timer models ULT29-150SDWT and ULT29-150RDWT
include a plug and lead to suit HPM 4 pin socket.

Suggested Specification

The ceiling fans shall be of the Ultimate Header Box Series as designed by Fantech Pty Ltd. and be of the model number shown on the schedule/drawing.
Impellers shall be forward-curved centrifugal and driven by a squirrel cage motor with integral thermal protection.
They shall be fitted with high strength swing clips, removable spigot, low resistance non-return backdraft damper and removable clip-in diffuser. They shall include a plug and lead, and its housing and diffuser be made of injected moulded, fire retardant, ABS plastic. They shall be tested to ISO5801: 2007 for air flow and ISO3744: 2010 for noise.

Technical Data - ULT29-150RDW

Speed [rps]	Avg. dBA @ 3m	kWatts (Input)	Amps	Max.°C	Approx. Weight [kg]
16	37	0.06	0.27	40	3.25

Sound Data

Type	63	125	250	500	1K	2K	4K	8K
Inlet	68	62	58	55	55	47	42	35

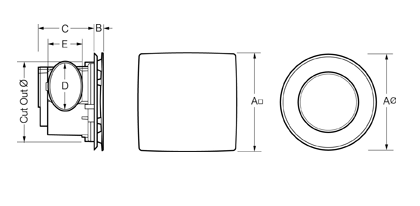

Dimensions

A	B	C	D	E
332	30	197	170	120

*All dimensions in mm, unless otherwise stated

Wiring Diagram

Diagram shown is for single-speed only.
For 2-speed and special motors, contact Fantech for details.
