Ezifit Thru Wall Exhaust Fan – EWE152
Performance Curve - EWE152
Description
The Ezifit Thru Wall is an exterior surface mounted exhaust fan that is very powerful and easy to install. It is ideal for downstairs toilets, laundries and kitchens, or retrofitting an existing in-line fan system. It provides easy access for cleaning and is suitable for applications requiring long lengths of duct.
Features
Designed for exterior surface mounting.
Compact design makes it ideal for installing into tight spaces.
Provides quiet, powerful exhaust.
Can be used with a variable speed controller.
Grey Colorbond finish that can be painted to match wall colour.
Fitted with insect-proof mesh.
Connects to 150mm diameter duct.
Can exhaust from a number of points.
Duct and grille kits available.Construction
Metal cover with shade grey Colorbond finish.
Insect-proof mesh included.
Backward-curved centrifugal fan with non-stalling
characteristics.
Motors
Type - external rotor, squirrel cage induction motor.
Electricity supply - 230V, single-phase, 50Hz.
Bearings - sealed for life ball.
Speed-controllable using electronic speed controller.
Class B motor, IP44 rated.
Internal Thermal Protection
Manual-reset thermal protection
Testing
Air flow tests to ISO5801:1997
Noise tests to BS848:Part 2 1985
Suggested Specification
The Ezifit Thru Wall Fans shall be as supplied by
Fantech Pty Ltd.Technical Data - EWE152
| Speed [rps] | Avg. dBA @ 3m | kWatts (Input) | Amps | Max.°C | Approx. Weight [kg] |
|---|
| 41 | 46 | 0.07 | 0.3 | 75 | 4 |
Sound Data
| Type | 63 | 125 | 250 | 500 | 1K | 2K | 4K | 8K |
|---|
| Inlet | 61 | 60 | 66 | 65 | 61 | 57 | 52 | 42 |

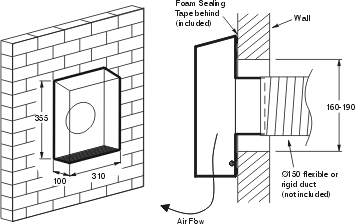

Dimensions
*All dimensions in mm, unless otherwise stated
Wiring Diagram
Diagram shown is for single-speed only.
For 2-speed and special motors, contact Fantech for details.
Ancillaries
