AeroMini Destrat. Fans – ZFH15EC
Description
This compact ZOO (Zone Of Occupancy) Fan destratifies by
producing a gentle, precise column of air that draws warm air
from the ceiling and forces it down to floor level. By doing this
it helps to create a more pleasant and comfortable indoor
environment for workers and customers. It can also help to
lower a building’s operating costs by reducing the energy
consumption of a heating system in cooler weather.
Available in AC and EC configurations with a fan diameter
of 250mm.
Features - Helps to create a more productive, more comfortable
- environment that has the potential to reduce energy consumption
- Can be installed so its air flow avoids or targets specific areas
- Adjustable air flow using a speed controller
- EC ZOO fans can be used as a demand control destratification system with EC speed controller and two temperature sensors
- Pivoting handle allows quick change to airflow direction
- Comes with galvanised eye bolts making it easy to hang cable
- Model with finger guards on inlet and outlet available
- (See special note).
Construction
Handle is of powder coated steel with galvanised eye bolts
Fan body is of fire resistant, ABS injected moulded plastic
Motor
AC type - external rotor, squirrel cage induction motors.
EC type - electronically commutated motor.
Electrical supply - 230V single-phase, 50/60Hz.
Bearings - sealed-for-life, ball.
Speed-controllable.
Motor Protection IP44
Internal Protection
Auto-reset thermal protection
Testing
Air flow tests to DIN24166, Class1
Noise tests to DIN3745, Class1
Special Note
Finger guards must be fitted to fans if being mounted less than
2.1 metres from floor level.
Suggested Specification
The destratification fans shall be of the ZOO (Zone Of
Occupancy) Series as supplied by Fantech Pty Ltd and be of the
model number shown on the schedule/drawings. They shall be
constructed from fire resistant, ABS injection moulded plastic
and include a robust, pivoting metal handle.
The axial impellers shall be direct driven by speed-controllable
external rotor motors with integral thermal protection. Impellers
shall be of powder coated steel.
All models shall be fully tested to DIN24166, Class1 for air flow
and DIN3745, Class1 for noise
Velocity Profile
Technical Data - ZFH15EC
| Speed [rps] | Avg. dBA @ 3m | kWatts (Input) | Amps | Max.°C | Approx. Weight [kg] |
|---|
| 36 | 61 | 0.057 | 0.49 | 60 | 4.7 |

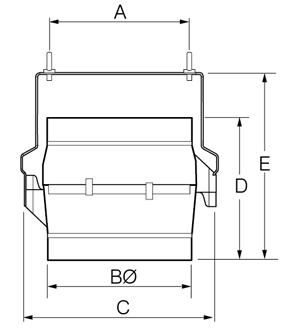

Dimensions
*All dimensions in mm, unless otherwise stated
