Description

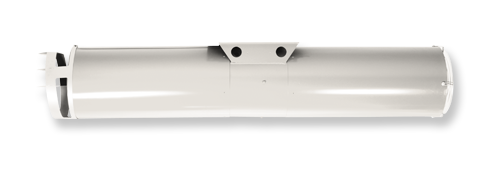

The JV Series of JetVent axial fans have been designed to provide effective ventilation in most spaces that contain harmful vehicle exhaust pollutants. They can be supplied for uni-directional or truly reversible air flow and are available in 2 sizes, 315mm and 400mm diameter. Units approved to AS4429:1999 for smoke exhaust are also available.

Typical Application
Enclosed or semi-enclosed spaces that contain harmful vehicle exhaust pollutants. These spaces include commercial and residential car parks, loading bays, drive through facilities and indoor go-kart tracks. Can also increase cross-flow ventilation in open car parks.

Features

Available with single (high) or 2 speed (high/low) motor.

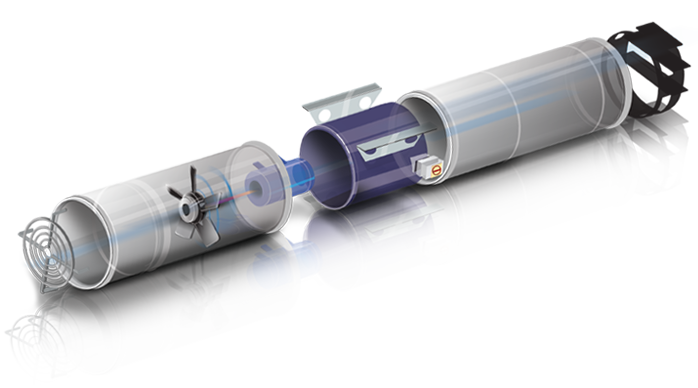

Integral aerodynamically designed silencers provide quiet operation.
Bell mouth inlet and outlet optimises performance.
Units can be speed controlled using Variable Speed Drives.
Can be supplied for uni-directional or truly reversible air flow.
Fitted with a high performance aerofoil impeller.
Durable galvanised steel housing with light grey powder coated finish as standard.
Integral mounting feet allows unit to be easily mounted to ceiling.
Electrical isolator fitted on ambient temperature units.

Three Phase Models

Product Code	Avg. dB(A) @ 3m	kW	Amps	Thrust, N
JVU-CPA-315-2-3	59	0.55	1.41	20
JVU-CPA-400-2-3	62	1.5	3.15	50
JVU-CPA-315-4-3	49	0.55	1.63	5
JVU-CPA-400-4-3	47	1.1	2.6	12
JVU-CPA-315-2/4-3	59	0.8	1.9	20
JVU-CPA-400-2/4-3	62	1.7	3.5	50
JVR-CPA-315-2-3	61	0.55	1.41	20
JVR-CPA-400-2-3	63	1.5	3.15	50
JVR-CPA-315-4-3	50	0.55	1.63	5
JVR-CPA-400-4-3	54	1.1	2.6	12
JVR-CPA-315-2/4-3	61	0.8	1.9	20
JVR-CPA-400-2/4-3	63	1.7	3.5	50
JVSU-CPA-315-2-3	59	0.55	1.41	20
JVSU-CPA-400-2-3	62	1.5	3.15	50
JVSU-CPA-315-4-3	49	0.55	1.63	5
JVSU-CPA-400-4-3	47	1.1	2.6	12
JVSU-CPA-315-2/4-3	59	0.55	1.5	20
JVSU-CPA-400-2/4-3	62	1.7	3.5	50
JVSR-CPA-315-2-3	61	0.55	1.41	20
JVSR-CPA-400-2-3	63	1.5	3.15	50
JVSR-CPA-315-4-3	50	0.55	1.63	5
JVSR-CPA-400-4-3	54	1.1	2.6	12
JVSR-CPA-315-2/4-3	61	0.8	1.9	20
JVSR-CPA-400-2/4-3	63	1.7	3.5	50
