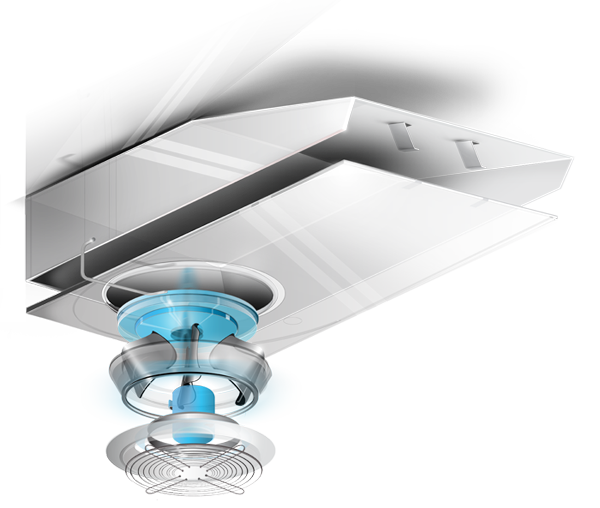

The JIU Series of JetVent fans are suitable for car park installations where a low ceiling height and tight spaces make fitting the fans particularly challenging. The JIU CPC2 Series can be controlled either by a Variable Speed Drive (VSD) or a two-speed switching.
Typical Application
Enclosed or semi-enclosed spaces that contain harmful vehicle exhaust pollutants. These spaces include commercial and residential car parks, loading bays, drive through facilities and indoor go-kart tracks. Can also increase cross-flow ventilation in open car parks.
Features
- Highly efficient, aerodynamically designed internal flow elements
- Available with powerful 50 or 100N thrust capacities
- Compact low profile design makes it suitable for applications with low ceiling heights
- Durable galvanised steel housing with light grey powder coated finish as standard.
- Integral mounting feet allows unit to be easily mounted to ceiling.
- High/low speeds selected by switching from star to delta electrical connection.
- Low noise/low speed models available.
Three Phase Models
| Product Code | Avg.
dB(A)@ 3m | kW | Amps | Thrust, N |
|---|
| 57 | 0.35 | 1.38 | 12 |
| 73 | 1.38 | 3.21 | 50 |
| 57 | 0.68 | 2.26 | 18 |
| 74 | 2.7 | 6.03 | 100 |
