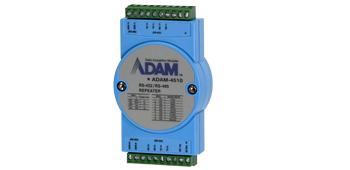

ComLink Repeater Module

The ComLink Repeater Module simply amplifies, or boosts an existing RS485 communications network in distance and in device configuration. Where RS485 has the electrical limitation of 32 connected devices (by Modbus standard), a repeater can be used increase this amount. The module can also be used where the ComLink line branches off, such as a multi-level car park where one repeater is used per level for better noise suppression and a good quality communication signal.

• Automatic RS485 data flow control
• Surge protection RS485 data line
• Transmission speed up to 115.2 Kbps
• Networking up to 1000 metres
• LED indicator to monitor status

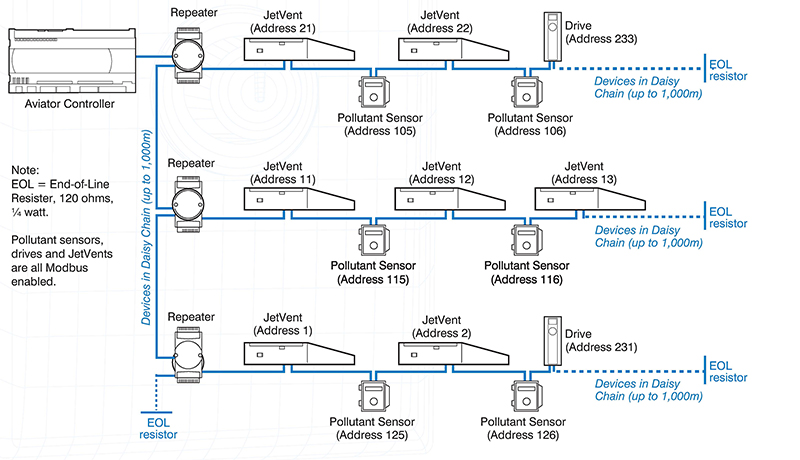

Example - 3 Car Park Levels
