Description

The Ezifit Thru Roof exhaust fan is designed to provide powerful air flow through 150mm and 200mm duct from one or more points and is suitable for connection to long duct runs. The easy to install unit produces low noise within the building as it’s mounted externally on the roof.

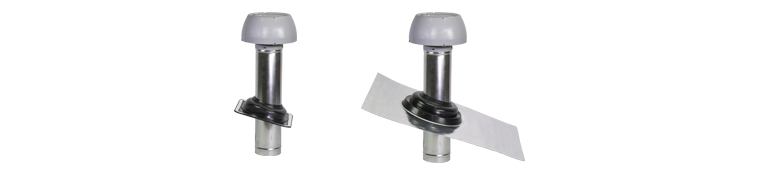

The eight models are available with a metal deck or tile roof flashing piece.

Typical Application
Exhausts from kitchens, bathrooms, ensuites and laundries in homes or commercial premises.

Features

Galvanised steel duct with UV stabilised ABS plastic cowl

Easy and simple to install

Comes with convenient 3-pin plug and lead

3-pin plug connection between the motor assembly and duct

Provides high performance with low noise

Powerful fan allows it to exhaust from a number of points/rooms

Suitable for tile and metal deck type roofs

External installation provides quiet operation within the building

High quality ‘Continuous Rated’ motor.

Speed-controllable with electronic controller.

Coloured finish is an optional extra.

Supply air unit are also available.

Single Phase Models

Product Code	Diameter [mm]	Speed [rps]	kW	Amps	Max.Pressure [Pa] -Recom	Max.Volume [m³/sec]
ECEP152T	190	42	0.059	0.27	292	0.12
ECEP154T	190	33	0.05	0.25	195	0.09
ECEP204T	280	23	0.081	0.38	180	0.29
ECEP156T	190	19	0.045	0.22	87	0.07
ECEP152M	190	42	0.059	0.27	291	0.12
ECEP154M	190	33	0.05	0.25	194	0.09
ECEP204M	280	23	0.081	0.38	181	0.29
ECEP156M	190	19	0.045	0.22	86	0.07
